Wi-Fi connectivity

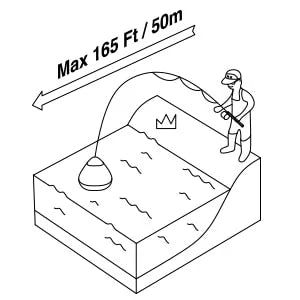

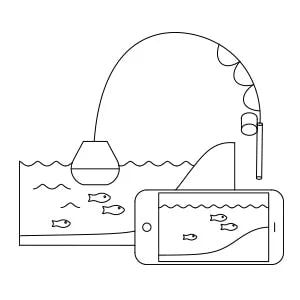

Casting range 50 m
Scanning depth 50 m
Intuitive interface

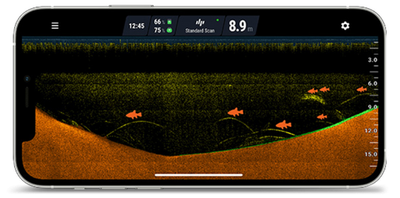

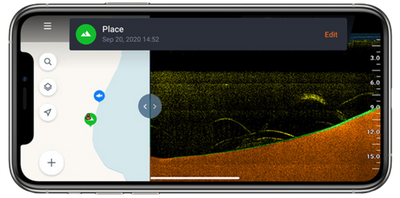

Fish icon display
Material
ABS
Compatibility
From iOS 11.0 and Android 4.4 to the latest iOS and Android devices
Sonar type
Single beam

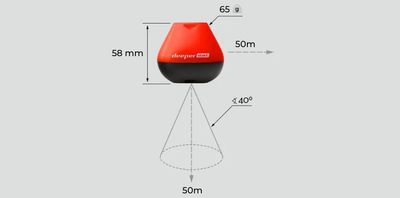

Frequency (beam cone)
120 kHz, 40°
Max/min depth range Max
165ft / 50 m, Min 1.6ft / 0.5 m
Sonar scan rate
10 scans per second
Operating temperature
0°C to 40°C / 32°F to 104°F
Internal battery
Lithium polymer, rechargeable 3.7 V, 850mAh
Power supply input (for battery charging)
5 V DC, 650 mA max
Power adapter (not included in the box, recommended)
Input 110 V / 240 V AC. Output Micro USB A, 5 V 450 mA

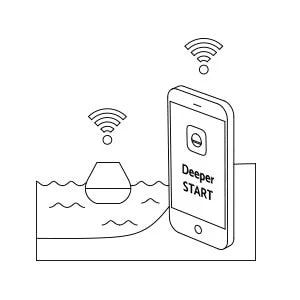

Connection type
Wireless Wi-Fi connection
802.11 b/g 2.412GHz 1channel
802.11 b max TX power +20 dBm, sensitivity -91 dBm
802.11 g max TX power +17 dBm, sensitivity -75 dBm
Connection range
Up to 165 ft. / 50 m. Range depends on OS and smartphone model
Battery life
Up to 6 hours
Charging time
2.5 hours
Color
Black and orange
